      Grove - Alcohol Sensor

      Grove - Alcohol Sensor

      SKU 101020044
      $7.90
      10 Available
      $7.90/1pcs+
      $7.11/10pcs+
      $6.71/20pcs+
      $6.32/50pcs+

        I accept the restriction

      This development board can be only used for prototyping, it cannot be built into a product for commercial distribution. It cannot be re-sold or used as part of a production environment.

      Maximum Qty: 5

      Description

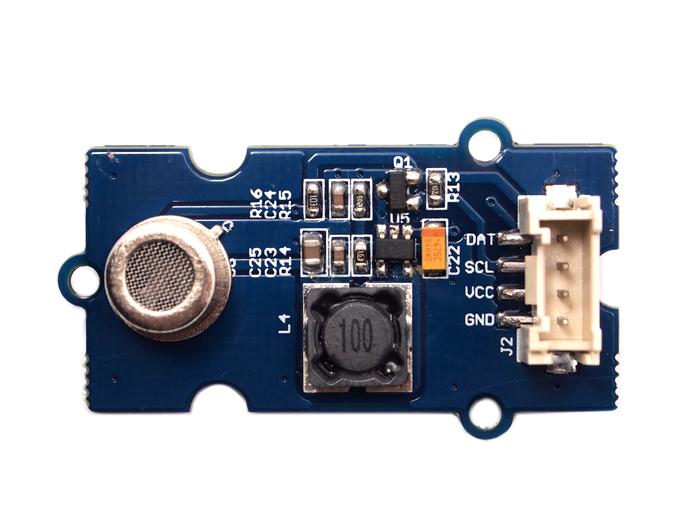

      Grove - Alcohol Sensor is a complete alcohol sensor module for Arduino or Seeeduino. It is built with MQ303A semiconductor alcohol sensor. It has good sensitivity and fast response to alcohol. It is suitable for making Breathalyzer. This Grove implements all the necessary circuitry for MQ303A like power conditioning and heater power supply. This sensor outputs a voltage inversely proportional to the alcohol concentration in air.

      Technical Details

      Dimensions40mm x 20mm x 12mm
      WeightG.W 9g
      BatteryExclude
      Power requirements5 VDC @ ~120 mA (heater on)
      Detection GasAlcohol
      Concentration20-1000ppm Alcohol
      Interface1 TTL compatible input (SEL), 1 TTL compatible output (DAT)
      Heater Voltage0.9V ± 0.1V AC or DC
      Heater Current120 ± 20mA

      Part List

      Grove - Alcohol Sensor1
      Grove Cable1

      Reviews

      Questions and Answers

      SUBMIT
      0
      To do the 48 hours preheat, do i just connect the sensor, the base shield and an arduino board together and plug them into a computer/power source? Or do i have to do something with the code first?
      on Mar 28,2018
      Replyupvote ()
      Hi there~ Please plug this sensor into baseshield,plug the baseshild into the arduino,and connect the the arduino to you computer via USB cable, then you need to update the code and keep the code running for 48 hours. For more detail,please refer to our wiki. Regards================================================================ http://wiki.seeedstudio.com/Grove-Alcohol_Sensor/
      on Mar 29,2018 09:32 AM
      Replyupvote ()
      Reply
      0
      I have bought the Grove Shield for Micro:bit, and I also purchased some other sensor, say Alcohol sensor and HCHO sensor. Do they need a library for implement in microbit?
      on Dec 12,2017
      Replyupvote ()
      Hi there~Normarlly, if a sensor does not need a library in Arduino,then it does not need a library in micro:bit either.So you can use HCHO and Alcohol with micro:bit.Regards
      on Dec 13,2017 09:51 AM
      Replyupvote ()
      Reply
