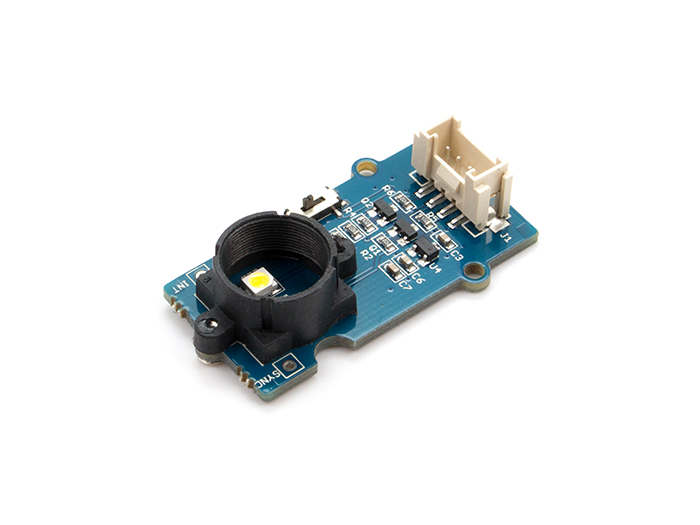

      Grove - I2C Color Sensor V2

      Grove - I2C Color Sensor V2

      SKU 101020341
      $9.00
      8 Available
      $8.85/10pcs+
      $8.70/20pcs+
      $8.60/50pcs+
      ADD TO CART

      Description

      This is an updated version of the Grove - I2C Color Sensor module. The new version is based on the color sensor TCS34725FN with digital output I2C. We also changed the circuit's layout based on the new sensor. Based on the 3*4 array of filtered photodiodes and 16-bits analog-to-digital converters, you can gain the color chromaticity of ambient light or the color of objects. Of the 16 photodiodes, 4 have red filters, 4 have green filters, 4 have blue filters and 4 have no filter(clear). With the synchronization input pin, external pulsed light source can provides precise synchronous conversion control.


      Features

      • Grove compatible interface

      • 16-Bit digital output with I 2C at 400 kHz

      • SYNC Input Synchronizes Integration Cycle to Modulated Light Sources

      • Programmable interrupt function with User-Defined Upper and lower threshold settings



      Documents

      Please visit our wiki for more info about this product. It will be appreciated if  you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.


      Technical Details

      Dimensions42mm x 23mm x 10mm
      WeightG.W 10.4g
      BatteryExclude
      Supply Voltage3.3/5V
      Operating temperature range -40℃ to 85℃
      InterfaceI2C

      Part List

      Grove - I2C Color Sensor V21
      Grove Cable1
