Grove IoT Developer Kit – Microsoft Azure Edition contains an Intel® Edison module, an Intel® Edison for Arduino board, a Grove Base Shield, a set of Grove sensors and actuators with build-in Grove ports for rapid prototyping. Simply plug in the modules and you are ready to create. Part of Microsoft Azure IoT ecosystem.
1 x Grove- Button
1 x Grove – Sound Sensor
1 x Grove – 3-Axis Digital Accelerometer(±1.5g)
1 x Grove – Touch Sensor
1 x Grove – Light Sensor
1 x Grove – Temperature Sensor
1 x Grove – LCD RGB Backlight
1 x Grove – Rotary Angle Sensor(P)
1 x Grove – Pieze Vibration Sensor
1 x Grove – Buzzer
1 x Grove – Green LED
1 x Grove – Blue LED
1 x Grove – Red LED
1 x Stepper Motor Driver
1 x Stepper Motor

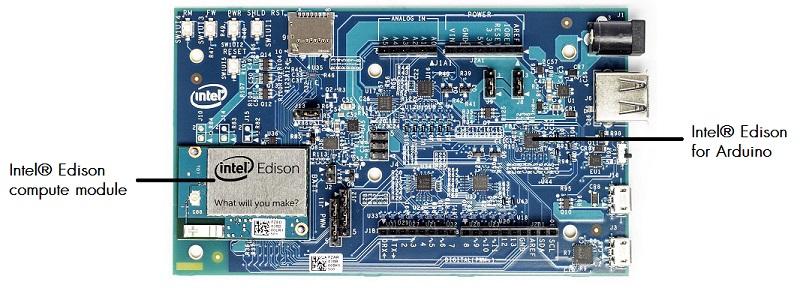

About Intel® Edison For Arduino:
The Intel® Edison compute module is designed for expert makers, entrepreneurs, and some industrial IoT applications, it provides ease-of-development for a range of prototyping projects or commercial ventures when performance matters. With an expansion board interfaces with a wide range of Arduino shields, Intel® Edison for Arduino allows quick and easy prototyping with open source hardware and a software development environment.
Intel® Edison module:
Uses a 22nm Intel® SoC that includes a dual core, dual threaded Intel® Atom™ CPU at 500MHz and a 32-bit Intel® Quark™ microcontroller at 100 MHz. It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp.
The Intel Edison module will initially support development with Arduino* and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future.
It includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service.
Has an SD card connector, micro USB or standard sized USB host Type-A connector(via mechanical switch), Micro USB device, 6 analog inputs, and 20 ditial input/output pins, 1x UART, 1x I2C, and 1x ICSP 6-pin header (SPI) Power jack with 7V-15V DC input.
Form factor: Board with 70-pin connector
Dimensions(Intel Edison module): 32.5 x 25.0 x 3.9 mm
Dimensions(Intel Edison for Arduino): 127.0 x 72.0 x 12.0 mm
Operating temperature: 0 to 40 degC
Connector: Hirose DF40 Series (1.5mm, 2.0mm, or 3.0mm stack height)
Max Memory size: 4GB
Memory type: DDR3, Nand Flash
Physical add. Ext.: 32-bit
# of DIMMs: 0
ECC Memory supported: NO
Total of 40 GPIOs which can be configured as:
SD Card: 1 interface
UART: 2 Controllers
I2C: 2 Controllers
SPI: 1 Controller with 2 chip select
I2S: 1 Controller
GPIO: Additional 12 (with 4 capable of PWM)
USB2.0: 1 OTG Controller
Clock Output: 32 KHz, 19.2 MHz
Major Edison Components
SoC: 22nm Intel SoC includes: a dual core, dual threaded Intel Atom CPU at 500MHz, and a 32-bit Intel Quark microcontroller at 100 MHz
RAM: 1 GB LPDDR3 POP memory
Flash Storage: 4 GB eMMC
WiFi: Broadcom 43340 802.11 a/b/g/n, Dual-band (2.4 and 5 GHz), On board antenna or external antenna SKU configurations
Bluetooth: BT 4.0
Input: 3.3V – 4.5V
Output: 100ma @3.3V and 100ma @ 1.8V
Power: Standby (No radios): 13mW, Standby (BT 4.0): 21.5mW, Standby (WiFi): 35 mW
Firmware + Software
CPU OS: Yocto Linux v1.6
Arduino IDE, Eclipse supporting: C, C++ & Python, Intel XDK supporting: Node.JS & HTML5
MCU OS: RTOS
Development Environments: MCU SDK and IDE
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
