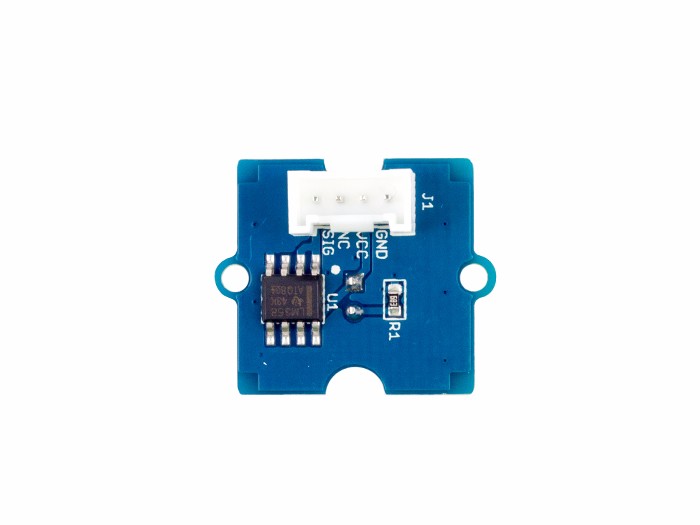

Grove - Light Sensor (P) v1.1

SKU
101020173
Rating:
100% of 100
Rating:
100% of 100
$2.90
In stock
50+ Available
-
+
Qty Discount available
  • $2.85 /10pcs+
  • $2.80 /20pcs+
  • $2.70 /50pcs+

Differs from the last version, the Grove - Light Sensor (P) v1.1 uses the LS06-S phototransistor as a replacement of the traditional Light Dependent Resistor (LDR) sensors. The LS06-S light sensor has much more linear analog output conforming to illuminance, which ranges from 0 to the supplying voltage (normally 5V). A value equals to the supplying voltage can be detected when it’s exposed to daylight, and it gives 0V when you covered it with your hand.


Features

  • linear analog output conforming to illuminance

  • Low dark current and low working lux

  • Easy to use


Specifications

  • Power supply: 3.3 - 5V DC

  • Phototransistor: LS06-S

  • Connector: 4 pin Buckled Grove interface

  • Dimension: 20mm*20mm


Documents

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

It will be appreciated if you can help us improve the documents, provide more demo code or tutorials. For technical support, please post your questions to our forum.

Technical details

Dimensions 130mm x90mm x9.5mm
Weight G.W 8g
Battery Exclude

Part List

Grove - Light Sensor(P) V1.1 1

ECCN/HTS

ECCN EAR99
HSCODE 9031900090
USHSCODE 90230000
UPC 841454118725

Grove - Light Sensor

Wiki of Grove - Light Sensor

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Faqs


Sort by
  • Question by: admin on 2018-12-18 02:30:29

    Hi there~ The light sensor value only reflects the approximated trend of the intensity of light, it does not represent the accurate value.Regards

    Answer by: admin on 2018-12-18 02:30:29
