BeagleBone Green Wireless Development Board(TI AM335x WiFi+BT)

SKU
102010048
Rating:
88% of 100
Rating:
88% of 100
$52.90
Out of stock
1 Available
Qty Discount available
  • $52.00 /10pcs+
  • $51.00 /20pcs+
  • $50.00 /50pcs+

Bundle Sales

  1. Image
  2. +
  3. Image
Total price: $0.00


Interested in a customized Beaglebone Green? Check out our ODM services here!

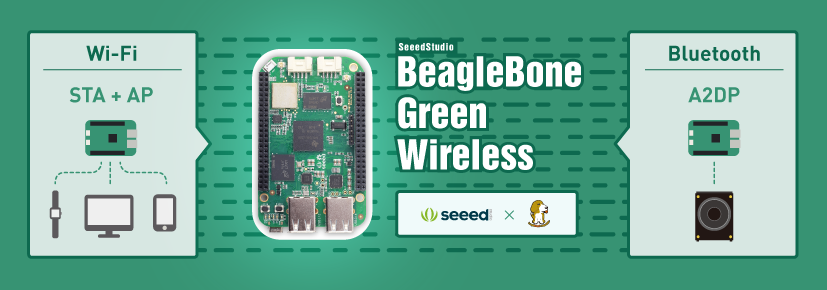

SeeedStudio BeagleBone Green Wireless is a joint effort by BeagleBoard.org and Seeed Studio. Based on the open-source hardware design of BeagleBone Black, the newest BBGW has added two Grove connectors, making it easier to connect to the large family of Grove sensors. It is the first Wi-Fi + Bluetooth Low Energy (BLE) board from BeagleBone community.


Features

  • The first Wi-Fi + Bluetooth Low Energy (BLE) board from BeagleBone community

  • Built-in 2.4 GHz TI WLinkTM8 Module with two antenna solution

  • On-board chip antenna

  • IEEE 802.11b/g/n compliant

  • FCC, CE, and TELEC certified

  • Supports AP+STA mode of communication

  • Comply with Bluetooth Advanced Audio Distribution Profile (A2DP)

  • Supports MRAA library


Boards Comparison


BeagleBone Black

MSRP: USD 55



SeeedStudio BeagleBone Green

MSRP: USD 44



SeeedStudio BeagleBone Green Wireless

MSRP: USD 49.9


AM3358 1GHz ARM® Cortex-A8AM3358 1GHz ARM® Cortex-A8AM3358 1GHz ARM® Cortex-A8
512MB DDR3 RAM512MB DDR3 RAM512MB DDR3 RAM
4GB 8-bit eMMC on-board flash storage4GB 8-bit eMMC on-board flash storage4GB 8-bit eMMC on-board flash storage
3D graphics accelerator3D graphics accelerator3D graphics accelerator
NEON floating-point acceleratorNEON floating-point acceleratorNEON floating-point accelerator
2x PRU 32-bit microcontrollers2x PRU 32-bit microcontrollers2x PRU 32-bit microcontrollers
USB client for power & communicationsUSB client for power & communicationsUSB client for power & communications
1x USB host1x USB host4x USB2.0 host
EthernetEthernetWi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
2x46 pin headers2x 46 pin headers2x 46 pin headers
HDMI port2x Grove connectors2x Grove connectors




Technical details

Dimensions 126mm x76mm x24mm
Weight G.W 88g
Battery Exclude
Processor AM335x 1GHz ARMR Cortex-A8
RAM 512MB DDR3
on-board Flash Storage 4GB eMMC
CPU Supports NEON floating-point & 3D graphics accelerator
Micro USB Supports powering & communications
USB 4 x USB2.0 Host
Grove Connectors 2 x (One I2C and One UART)
GPIO 2 x 46 pin headers
Ethernet Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
Operating Temperature 0 ~ 75℃

Part List

SeeedStudio BeagleBone Green Wireless 1
USB Cable 1
User Guide 1

ECCN/HTS

ECCN 5A002.a.1
HSCODE 8471504090
FCC 1
CE 1

Mower Without An Engine/Yep!

I have this mower that I made from a BBG, Motor Bridge Cape, and there is no engine (YET)!

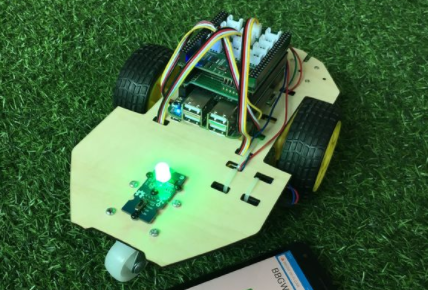

BeagleBone Web RC Car--wifi controled--Seeed Studio

Click it and you may find that's exactly what you need:

Super Quickly DIY Web RC Car With Python and BeagleBone

A nice gift for your kids

SeeedStudio BeagleBone Green Wireless

SeeedStudio BeagleBone Green Wireless is a joint effort by BeagleBoard.org and Seeed Studio. Based on the open-source hardware design of BeagleBone Black, the newest BBGW has added two Grove connectors, making it easier to connect to the large family of G
