Choosing an AGX Orin Carrier Board or Box? A Developer’s Guide to reComputer Mini J501 vs NVIDIA Dev Kit
You’re building an edge AI or robotics system and you’ve zeroed in on the NVIDIA Jetson AGX Orin — a powerhouse that delivers 275 TOPS, 12 CPU cores, and an Ampere GPU. The developer kit is a fantastic starting point, but when it comes to production, the shiny dev kit might not be the perfect fit.
Why? Two real-world limitations stand out:
- Thermal constraints: The official dev kit is limited to room-temperature environments. Once ambient temperatures exceed 35℃, performance drops.
- I/O made for the bench: Many connectors are pin-header based, which isn’t ideal for rugged, mobile, or industrial deployments.
That’s where the Seeed reComputer Mini J501 series comes in — designed from the ground up for real-world robotics and edge AI. Let’s break down how it compares and where it truly shines.
Industrial Communication: The Robot’s Nervous System
Robots and industrial systems need to talk to motors, sensors, PLCs, and networks. Here’s how the reComputer Mini J501 series stacks up against the dev kit.

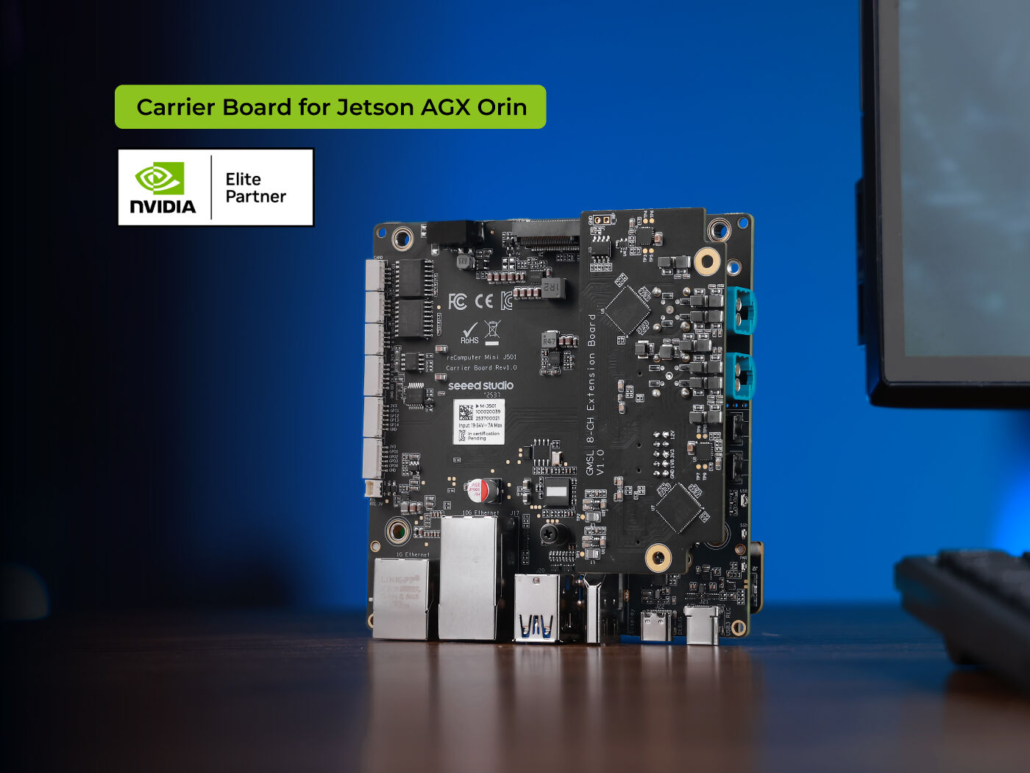

reComputer Mini J501 (compact form factor)

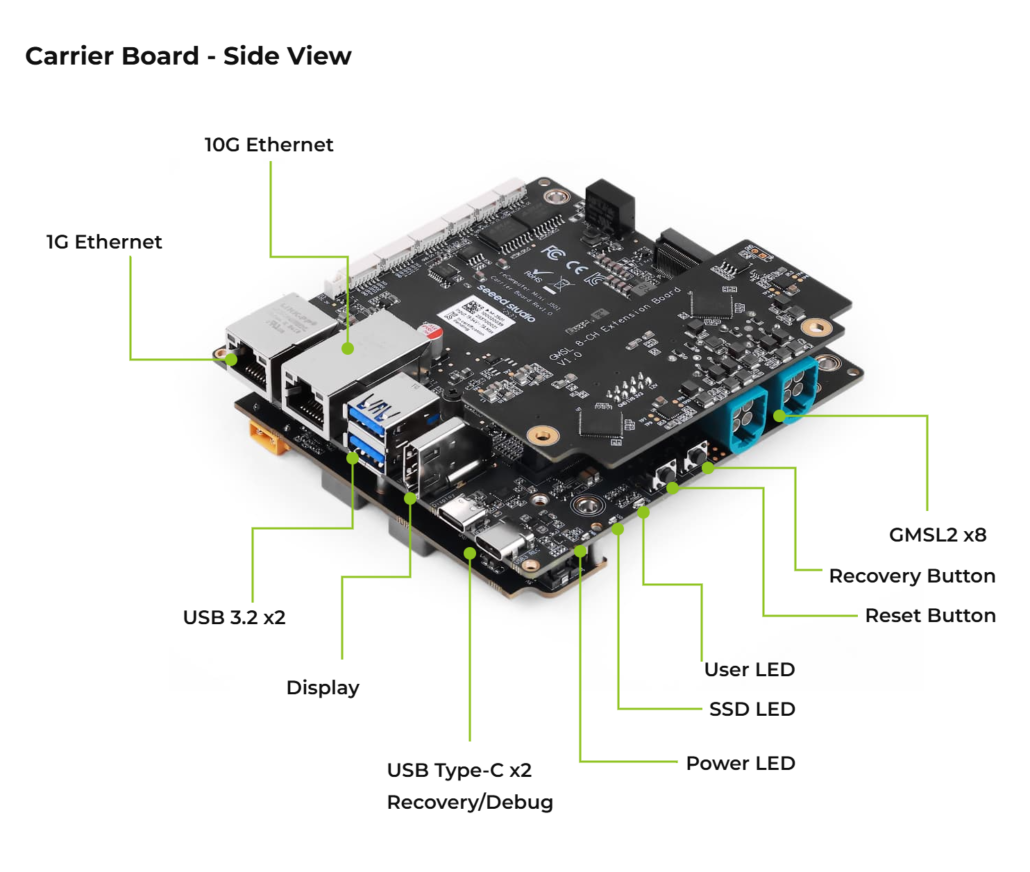

| Interface | reComputer Mini J501 | AGX Orin Dev Kit |
| Ethernet | 1× GbE, 1× 10GbE | 1× 10GbE |
| CAN Bus | 2× JST (latched) | Pin header |
| RS‑485 | 1× JST (latched) | Not supported |
| Digital I/O | JST connectors (DI/DO) | Not supported |
| GMSL | 8× native FAKRA | Requires expansion |
| I2S | 1× JST (latched) | Pin header |
reComputer Mini J501 gives you industrial I/O out of the box — no extra hats, breakouts, or dongles.
Power & Form Factor: Built for Real Robots
- Wide voltage input – 19‑48 V DC, so you can power directly from robot batteries (the dev kit needs an AC adapter).
- Ultra‑thin & compact – 110 × 110 mm (Mini J501) fits inside tight robot chassis.
- Industrial temp range – Operates from –10 ℃ to 60 ℃. Ready for the field.
- Anti‑vibration design – Certified for AGVs, AMRs, and mobile platforms.
Which One Should You Choose?
Choose reComputer Mini J501 if you:
- Build humanoid/legged robots or embodied AI systems
- Need multi‑camera GMSL2 for BEV, 360° perception, or surround‑view
- Develop industrial automation, robotic arms, or quality inspection

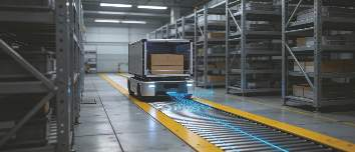

- Work on mobile robots (AGV/AMR) with SLAM and navigation
- Require direct battery power (up to 48V) and rugged reliability
Choose the official AGX Orin Dev Kit if you:
- Are prototyping or learning and want extensive official docs/community support
- Run general‑purpose AI models without robot‑specific interfaces
- Use it for education, coursework, or student projects in controlled environments
Key takeaway
The reComputer Mini J501 is essentially an enhanced carrier board for the AGX Orin module. You get the same 275 TOPS compute, but with must‑have robotics and industrial features built in: native GMSL2, industrial serial/CAN, wide‑voltage input, and extended temperature operation.
If you’re moving from prototype to production — especially in robotics, autonomous systems, or industrial AI — the Mini J501 is the smarter, more integrated choice.
