10.1 Inch LCD Display - 1366x768 HDMI&VGA&NTSC&PAL

SKU
104990066
100% of 100
Be the first to review this product
Ultra thin High resolution Multiple video formats supported Compatible with Raspberry Pi A+,B,B+/2
Email
$89.00
In stock
  • 10+: $80.10
-
+

Who Viewed This Also Viewed

A geek style monitor for embedded computer system, consists of a 10.1 inches TFT-LCD and a driver board.

TFT-LCD stands for Thin-film-transistor liquid-crystal display.The TFT technology is used on LCD to improve image quanlities such as addressability and contrast. In the method of switching individual elements(pixels),the TFT technology let each pixel be attached to a transistor and capacitor actively maintaining the pixel state while other pixels are being addressed, so a TFT LCD is also an active-matrix LCD, in contrast to passive-matrix LCDs.

This TFT LCD has 10.1 inches diagonal measured active display area with HD resolution (1366 horizontal by 768 vertical pixel array)and an integral LED backlight system. Furthermore, it also includes a little PCB controller for you to adjust brightness, color and contrast.

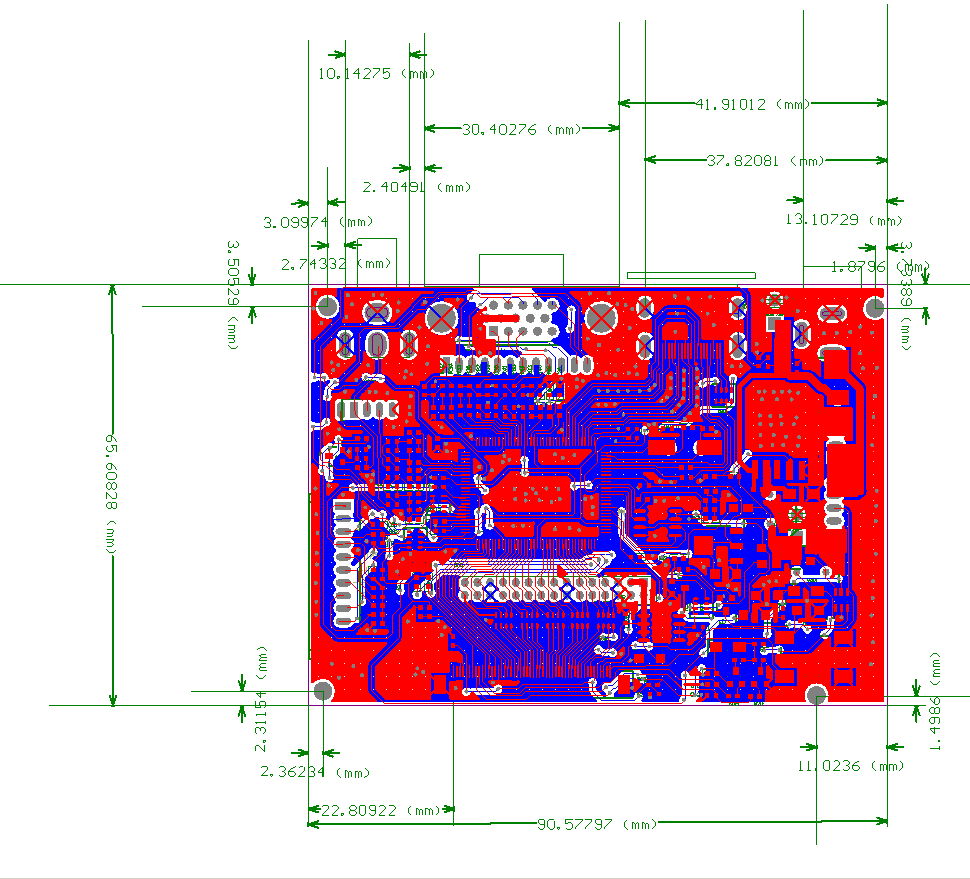

The driver board is specially designed to meet the needs of market and the development of small size, versatile, wide-grade industrial LCD panels, it can support multiple video formats like HDMI, VGA, NTSC and PAL.

Note：

This monitor has been tested with RPI, Beagle, and personal computer. The HDMI cable and AC/DC adapter is not included, should be purchased separately.


Features

  • Ultra thin

  • High resolution

  • Multiple video formats supported

  • Compatible with Raspberry Pi A+,B,B+/2.


    Technical details

    Dimensions 230mm x150mm x5.2mm
    Weight G.W 475g
    Battery Exclude
    Operating Voltage 5~24V
    Video Input HDMI, VGA, AV
    Screen Size 10.1"
    Screen Type TFT-LCD
    Mode TN, Normally White, Transmissive
    Display Color 262K
    Lamp Type WLED
    Frequency 60Hz
    Signal Type LVDS (1 ch, 6-bit)
    Max. Resolution 1366x768
    Min. Brightness 200cd/m2
    Min. Contrast Ratio 400:1
    Display Ratio 16:9

    Part List

    10.1 Inch LCD Display 1

    ECCN/HTS

    ECCN ERA99
    HSCODE 9013803010
    USHSCODE 8531200020
    UPC 841454113492

    Documents

    Write Your Own Review
    Only registered users can write reviews. Please Sign in or create an account

    Product Faqs

    Sort by

    • Has this display been tested with the Beaglebone Black as well?
      Question by: admin on 2018-12-18 02:34:11

      Yes. It works with Beaglebone Black, too.

      Answer by: admin on 2018-12-18 02:34:11

    • Does this board support audio output?
      Question by: admin on 2018-12-18 02:34:11

      Hello, this display doesn't support audio output. But the raspberry pi already has build-in audio output port.

      Answer by: admin on 2018-12-18 02:34:11
    • hdmi cec
      Question by: admin on 2018-12-18 02:30:21

      Hi there~ Could you please tell us more about your question.Regards

      Answer by: admin on 2018-12-18 02:30:21
    • Should we get 9V DC or 12V DC power adapter?
      Question by: admin on 2018-12-18 02:21:29

      Hello, the power is in wide range, 5-24V. So I think 5V or 12V DC is ok. Thanks.

      Answer by: admin on 2018-12-18 02:21:29
    • Is there any enclosure available ?
      Question by: admin on 2018-12-18 02:21:28

      Hi Vincent, Sorry, we don't have the enclosure for the kits. thanks. Bill

      Answer by: admin on 2018-12-18 02:21:28
    • Driver board is included?
      Question by: admin on 2018-12-18 02:21:08

      IN fact , the driver board is not included

      Answer by: admin on 2018-12-18 02:21:08
