LinkIt Smart 7688

The Linklt Smart 7688 development platform offers two developments boards:

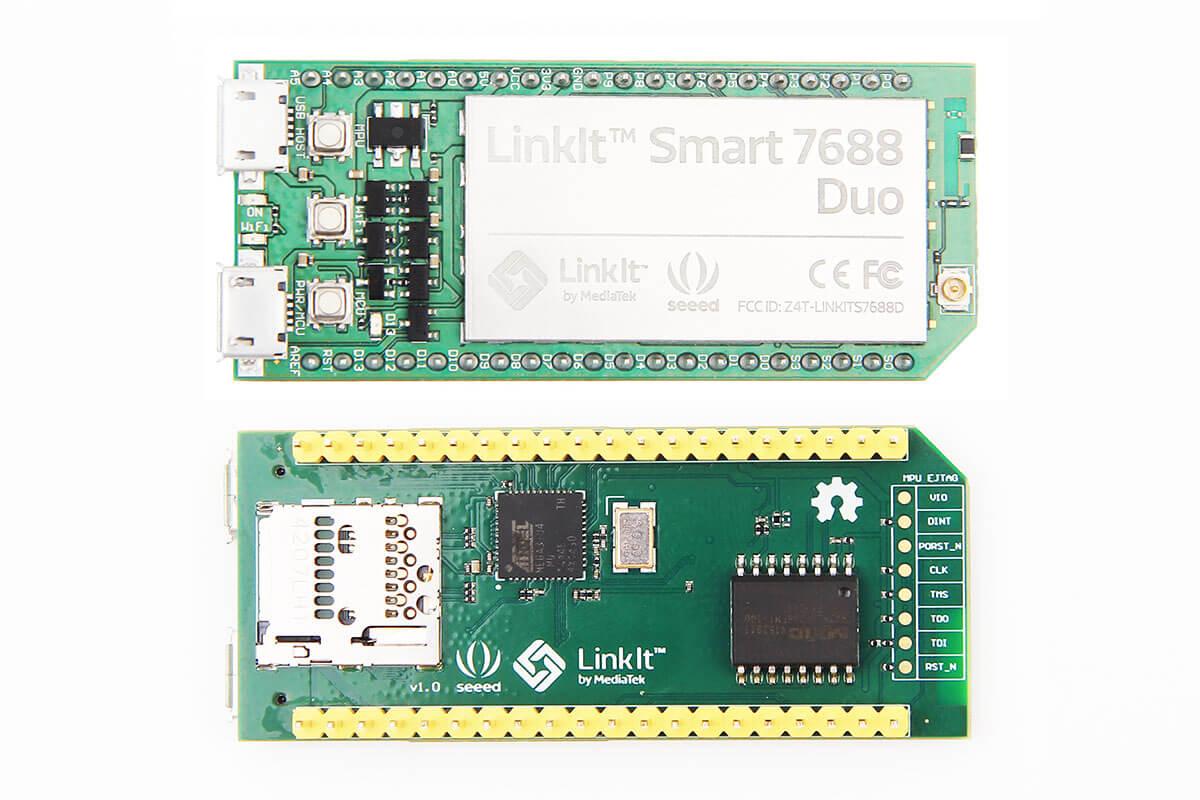

What is LinkIt Smart 7688 Duo

LinkIt Smart 7688 Duo is an open development board compatible with Arduino Yún sketches, based on the OpenWrt Linux distribution, MT7688 and ATmega32u4. The board is designed especially to enable the prototyping of Rich IoT Application for smart house or office. Since it is compatible with Arduino, this allows you to use different features from Arduino Yún and LinkIt Smart 7688 Duo, which will help you build rich applications based on various, robust and compiled Arduino Yún sketches. The board offers you the memory and packet storage to enable robust video processing. The platform also offers options to create device applications in Python, Node.js and C programming language.

LinkIt Smart 7688 duo is a co-design product by Seeed Studio and MediaTek. It brings together the parties' knowledge in open hardware and industry leading reference designs for IoT devices to create this powerful development board.

LinkIt Smart 7688 duo is fully supported on the MediaTek Labs site: check out the LinkIt sectionandregister here to download the SDK, participate in the Forums, and more.


Features

  • 580 MHz MIPS CPU

  • Single input single output(1T1R) Wi-Fi 802.11 b/g/n (2.4G)

  • Pin-out for GPIO, I2C, SPI, SPIS, UART, PWM and Ethernet Port

  • 32MB Flash and 128MB DDR2 RAM

  • USB host

  • Micro SD slot

  • Support for Arduino (ATmega32U4)

what is LinkIt ONE


Specifications

Category            Feature            Specification
MPU            Chipset            MT7688AN
Core            MIPS24KEc
Clock speed            580MHz
Working voltage            3.3V
MCU            Chipset            ATmega32U4
Core            Atmel AVR
Clock speed            8MHz
Working voltage            3.3V
PCB Size            Dimensions            60.8 x 26 mm
Memory            Flash            32MB
RAM            128MB DDR2
Power Source            USB Power            5V (USB micro-B)
VCC            3.3V (Pin Breakout)
GPIO            Pin Count            3 (MT7688AN)
24 (ATmega32U4)

Voltage            3.3v
PWM            Pin Count            8 (ATmega32U4)
Voltage            3.3v
Max. Resolution            16 bits (customizable)
Maximum Frequency@Resolution            31.25kHz@8-bit, Timer 0 (4 sets)
2MHz@2-bit,122Hz@16-bit, Timer 1 & 3 (4 sets)
187.5kHz@8-bit, 46.875kHz@10-bit, Timer 4 (6 sets)
ADC            Pin Count            12 (ATmega32U4)
Voltage            3.3v
External Interrupts            Pin Count            8 (ATmega32U4)
SPI/SPIS            Set count            1 (ATmega32U4)
Pin numbers            S0, S1, S2, S3
Max. Speed            4 MHz
I2C            Set count            1
Pin numbers            D2, D3
Speed            400K
UART Lite            Set count            1 (ATmega32U4)
1 (MT7688AN)
Pin numbers            P8, P9 (MT7688AN)
D0, D1 (ATmega32U4)
Max. Speed            0.5 Mbps (MT7688AN)
0.5 Mbps (ATmega32U4)
USB Host            Set count            1 (MT7688AN)
Pin numbers            P6, P7
Connector type            Micro-AB
Communication            Wi-Fi            1T1R 802.11 b/g/n (2.4G)
Ethernet            1-port 10/100 FE PHY
Pin numbers            P2, P3, P4, P5
User Storage            SD Card            Micro SD
SDXC



Schematic Diagram

Schematic diagram

Download Link


Demo

Demo

Facebook Likes Reminder

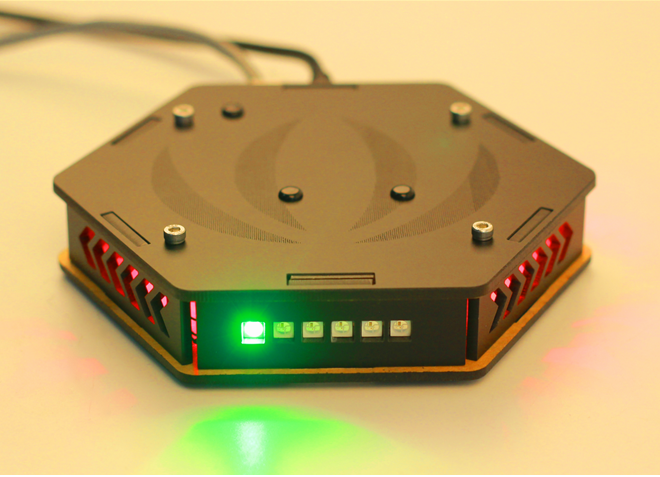

It will remind you when you have a new 'like' on your facebook page. The device will vibrate,the lights will twinkle, while the screen will show the real-time facebook likes. Learn more at our Recipe.
