Description

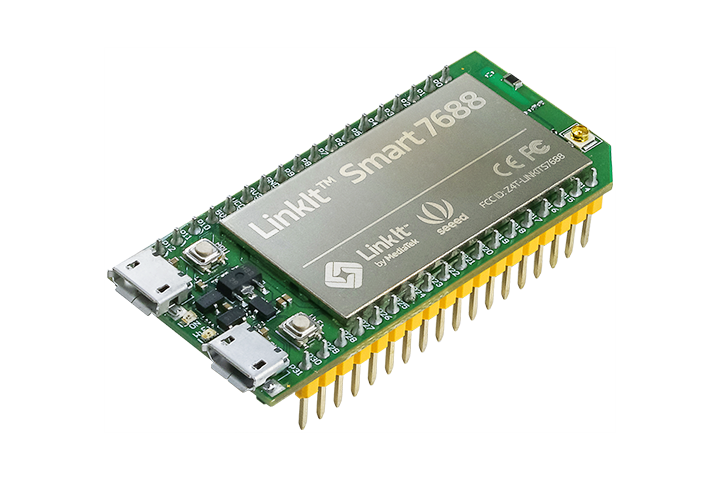

LinkIt Smart 7688

The Linklt Smart 7688 development platform offers two developments boards:

  • Linklt Smart 7688: MPU only. Powered by Media Tek MT7688.

  • Linklt Smart 7688 Duo: MPU and MCU. Powered by Media Tek MT7688 and ATmega 32U4.


What is LinkIt Smart 7688

The LinkIt Smart 7688 is an open development board, based on the OpenWrt Linux distribution and MT7688. The board is designed especially to enable the prototyping of Rich IoT Application for Smart Home. The board offers you the memory and packet storage to enable robust video processing. The platform also offers options to create device applications in Python, Node.js and C programming language.

LinkIt Smart 7688 is a co-design product by Seeed Studio and MediaTek. It brings together the parties' knowledge in open hardware and industry leading reference designs for IoT devices to create this powerful development board.

LinkIt Smart 7688 is fully supported on the MediaTek Labs site: check out the LinkIt sectionandregister here to download the SDK, participate in the Forums, and more.


Features

  • Single input single output(1T1R) Wi-Fi 802.11 b/g/n.

  • Pin-out for GPIO, I2C, I2S, SPI, UART, PWM and Ethernet Port.

  • 580 MHz MIPS CPU.

  • 32MB flash and 128MB DDR2 RAM.

  • USB host.

  • Micro SD slot.

what is LinkIt ONE


Specification

CategoryFeatureSpecification
    • MPUChipsetMT7688AN
CoreMIPS24KEc
Clock speed580MHz
Working voltage3.3V
    • PCB SizeDimensions55.7 x 26 mm
    • MemoryFlash32MB
RAM128MB DDR2
    • Power SourceUSB Power5V (USB micro-B)
VCC3.3V (Pin Breakout)
    • GPIOPin Count22 (MT7688AN)
Voltage3.3V
    • PWMPin Count4 (MT7688AN)
Voltage3.3V
Max. Resolution7 bits (customizable)
Maximum Frequency@Resolution100kHz@1-bit50kHz@2-bit 25kHz@3-bit 12.5kHz@4-bit 6.25kHz@5-bit3.125kHz@6-bit 1.5625kHz@7-bit (Standard mode)
40MHz@1-bit20MHz@2-bit 10MHz@3-bit 5MHz@4-bit 2.5MHz@5-bit1.25Mhz@6-bit 625kHz@7-bit (Fast mode)
    • External InterruptsPin Count22 (MT7688AN)
    • SPISet count1 (MT7688AN)
Pin numbersP22, P23,P24 (Shared with on-board flash), P25
Max. Speed25 MHz
    • SPI SlaveSet count1 (MT7688AN)
Pin numbersP28, P29, P30, P31
Max. Speed25 MHz
    • I2SSet count1 (MT7688AN)
Pin numbersP10, P11, P12, P13
    • I2CSet count1
Pin numbersP20, P21
Speed120K/400K
    • UART LiteSet count3 (MT7688AN)
Pin numbersP8, P9, P16, P17, P18, P19
Max. Speed0.5Mbps
    • USB HostSet count1 (MT7688AN)
Pin numbersP6, P7
SpeedMicro-AB
    • CommunicationWi-Fi1T1R 802.11 b/g/n (2.4G)
Ethernet1-port 10/100 FE PHY
Pin numbersP2, P3, P4, P5
    • User StorageSD CardMicro SDSDXC


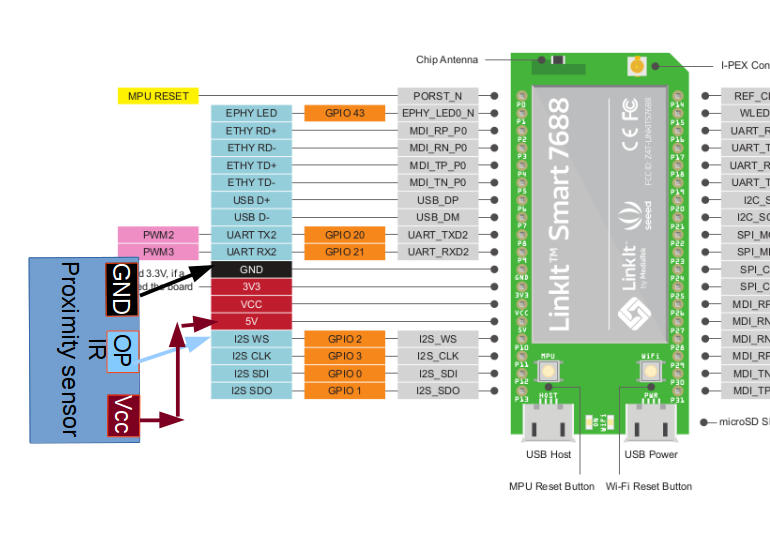

Schematic Diagram

Schematic diagram

Download Link


Demo

Demo

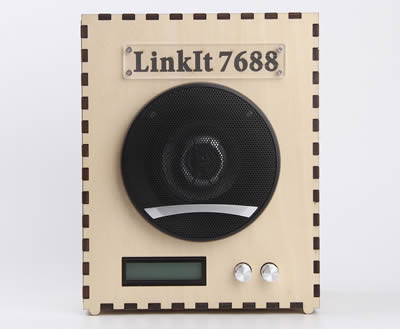

Smart WiFi Audio

It is a WiFi Audio which allows your mobile phone to connect to its WiFi and play the music in your phone. If you connect the Linklt Smart 7688 to your Router, the Audio will show the IP on the Grove RGB Backlight LCD, and also the song title.

Learn more at our Recipe.


Documents

Please visit our Wiki page for more info about this product. It will be highly appreciated if you can help improve the documents, add demo codes or tutorials. For technical support, please post your questions to our Forum.

Technical Details

Dimensions56mm x 26mm x 18mm
WeightG.W 39g
BatteryExclude

Part List

LinkIt Smart 76881

Reviews

It's good and compact , powerful
Make more eco for using linkit and samples of usage will provided,then It 's very useful IoT device platform.
Jan 04,2017 by
Was this review helpful ?
0

    Questions and Answers

    SUBMIT
    0
    How can a 2nd ethernet port be enabled? The MT7688A has a 5-port ethernet switch, so it would be nice to easily enable at least 1 more ethernet port by adding magnetics. Is this possible?<br/><br/>
    on Feb 23,2017
    Replyupvote ()
    Hi,   Could you tell me where you see "mt7688a has 5-port ethernet switch"? I only found that it has 1-port fast ethernet phy.
    on Feb 23,2017 11:28 AM
    Replyupvote ()
    The datasheet mentions a 5 port switch, because the 1 port PHY is actually port 6 on the switch.  it can have 5 ethernet ports.The pinout for the linkit smart 7688 has 4 pins going to the ethernet port 0 on breakout board labelled MDI_P0 and there is another set of 4 pins labelled MDI_P1.The uboot appears to set the MDI_P1 pins as part of SPIS, but i want to use as 2nd ethernet port.
    on Feb 23,2017 22:53 PM
    Replyupvote ()
    The datasheet is for MT7688, and not for Linkit7688. The subtle difference here is the way this board is manufactured several IO ports had to be made unavailable. If you can prepare your own board using MT7688, you will have full access to all of these peripherals and a PCIe port too..
    on May 12,2017 05:43 AM
    Replyupvote ()
    Reply
    0
    Hi,How can I change the default IP. If connected to LAN and this IP is used yet from another device - I can not access the linkit.local host?<br/><br/>
    on Apr 06,2017
    Replyupvote ()
    <div><font color="#333333" face="Helvetica Neue, Helvetica, Arial, sans-serif">Hello, seems that it need a bit more in-depth debugging that we can do via comments.</font></div><div><span style="color: rgb(51, 51, 51); font-family: "Helvetica Neue", Helvetica, Arial, sans-serif;">Please contact techsupport@seeed.cc with your set up, the code you’re using, and any errors you might be getting.</span></div><div><span style="font-family: 'Helvetica Neue', Helvetica, Arial, sans-serif;"><span style="color: rgb(51, 51, 51);">Thanks.</span></span></div>
    on Apr 14,2017 11:10 AM
    Replyupvote ()
    it is "mylinkit.local" If you are still now able to ssh into it.. use network mapping tools to look for the ip address "who is on my wifi for windows" or nmap for a linux console. I have tried the static IP thing, beleive me.. in the long run, you wud not wan that, just stick with a host name.
    on May 12,2017 05:40 AM
    Replyupvote ()
    Reply
    0
    I can get value of analog sensors with 5V ?<br/><br/>
    on Nov 16,2016
    Replyupvote ()
    Linkit Smart 7688 supports  operating voltage of 3.3V. It does not have a Analog Pin.
    on Nov 17,2016 16:49 PM
    Replyupvote ()
    use a I2C or SPI based sensor module and read data from there.
    on May 12,2017 05:41 AM
    Replyupvote ()
    Reply
    0
    How do I enable the I-PEX antenna?<br/><br/>
    on Jun 13,2017
    Replyupvote ()
    Hello, it's no need to enable the IPEX antenna.&nbsp;Thanks.&nbsp;
    on Jun 13,2017 14:16 PM
    Replyupvote ()
    Reply
    0

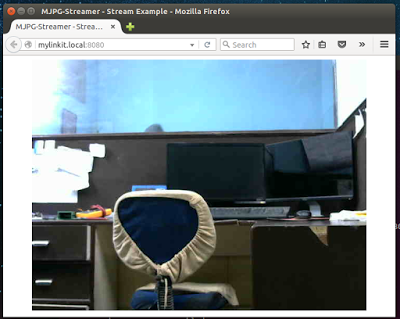

    The project with webcam streaming - are streamed data writen do flash memory? Because flash memory has shorter life when many wrintig/deleting to it. So I am affraid if MT7866 will die quickly?<br/><br/>
    on Mar 31,2017
    Replyupvote ()
    <div><font color="#333333" face="Helvetica Neue, Helvetica, Arial, sans-serif">Hello, seems that it need a bit more in-depth debugging that we can do via comments.</font></div><div><span style="color: rgb(51, 51, 51); font-family: "Helvetica Neue", Helvetica, Arial, sans-serif;">Please contact techsupport@seeed.cc with your set up, the code you’re using, and any errors you might be getting.</span></div><div><span style="font-family: 'Helvetica Neue', Helvetica, Arial, sans-serif;"><span style="color: rgb(51, 51, 51);"></span></span></div><div><span style="font-family: 'Helvetica Neue', Helvetica, Arial, sans-serif;"><span style="color: rgb(51, 51, 51);">Thanks.</span></span></div>
    on Apr 14,2017 12:05 PM
    Replyupvote ()
    Reply
    0
    Which GPIO do I need to use to reset wifi? (case: LinkIt device difficult to access, can't easily reach the onboard wifi button.)<br/><br/>
    on Dec 02,2016
    Replyupvote ()
    Hi,According to the developer's guide, there is no gpio to reset wifi directly.http://labs.mediatek.com/fileMedia/download/87c801b5-d1e6-4227-9a29-b5421f2955ac
    on Dec 05,2016 20:25 PM
    Replyupvote ()
    Reply
    1
    this product already out of stock for a long time, you guys plan to produce more, I developed a product based on it and I'm worried<br/><br/>
    on Oct 27,2016
    Replyupvote ()
    Hi my friend, it will be back into stock in the middle of Nov, around on Nov 16th. Pls kindly subscribe to get notified in order to receive the notification e-mail once it is available. Thanks.
    on Oct 28,2016 15:29 PM
    Replyupvote ()
    Reply
