NVIDIA® Jetson AGX Orin™ has been unequivocally the gold standard for robotics and edge AI in the past few years. Today we will go through the most prominent real-world applications and widely adopted use cases of Jetson AGX Orin™.

Robotics and Embodied AI

The role of the AGX Orin™ in embodied intelligence = the robot’s “onboard brain”: it is responsible for converting raw sensor data into semantic understanding and action commands the robot can act upon in real time, while being low-power enough for battery operation and compact enough to fit inside the robot’s body structure. It is the de facto standard for next-generation mobile, collaborative, humanoid, and service robots.

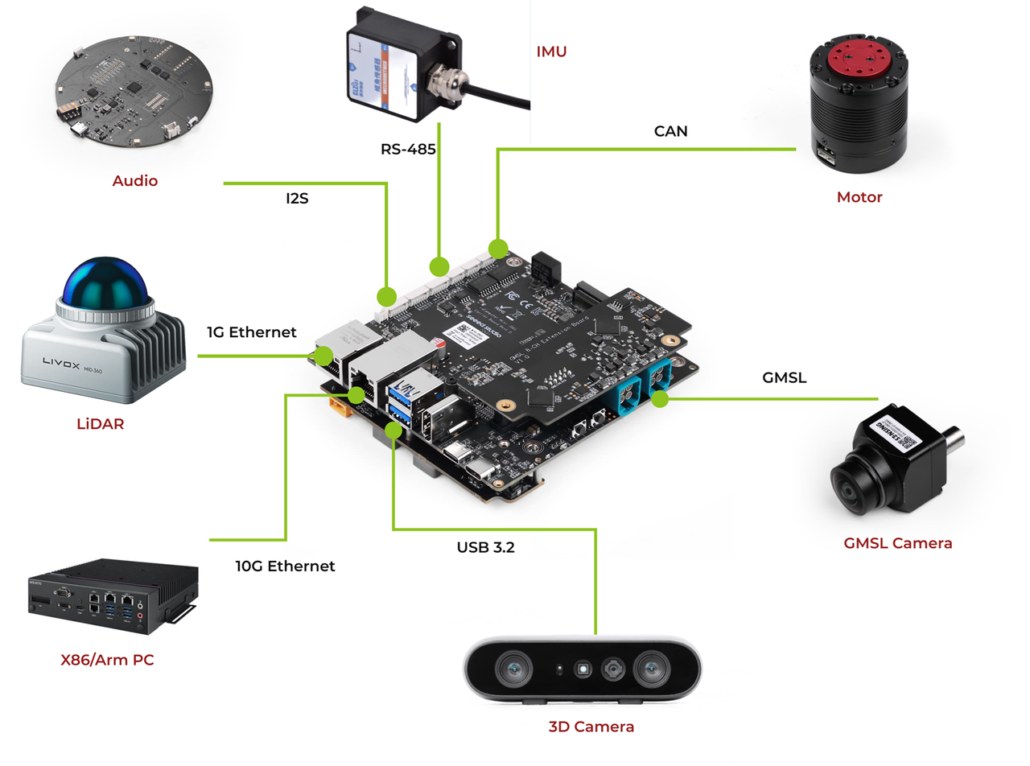

To accomplish that, AGX Orin™ would need to be connected to sensors such as LiDAR, cameras, IMU, audio sensors etc, while also connected to actuators or motion control PC’s. Below is a reference design architecture for AGX Orin™, based on reComputer Mini J501.

reComputer Mini J501 reference design

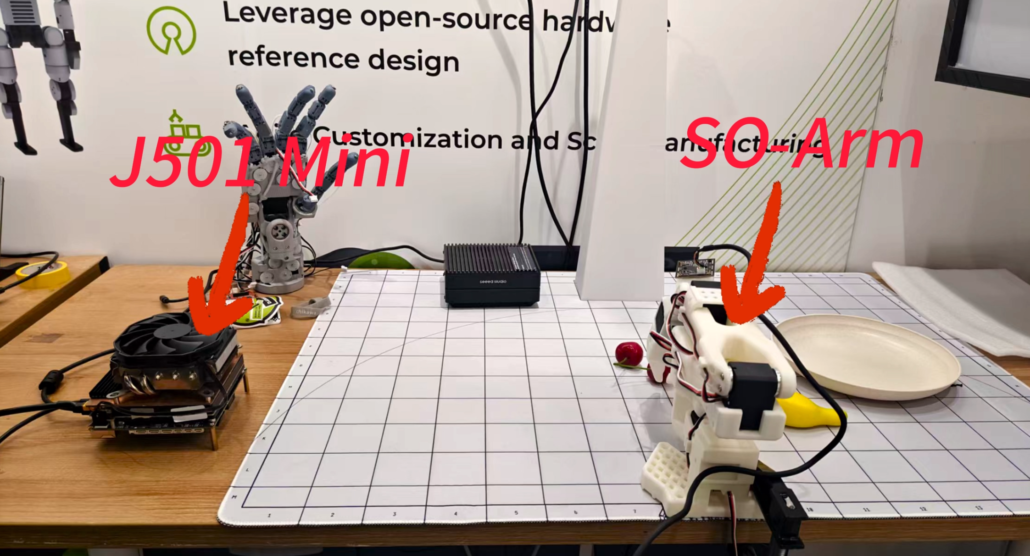

Here is an example demo of GR00T N1.6 deployment on reComputer Mini J501:

Autonomous Driving

Jetson AGX Orin™ is the dominant edge brain for L4 autonomous driving in closed and semi-closed domains—mining, ports, sweepers, delivery vehicles and campus shuttles. It offers server-class AI compute in an industrial-grade, low-power package. Jetson AGX Orin™’s GPU cores and dedicated AI accelerators ensure smooth operation of perception algorithms, obstacle avoidance, lane detection, and decision-making systems, thus enhancing safety and reliability on the road.

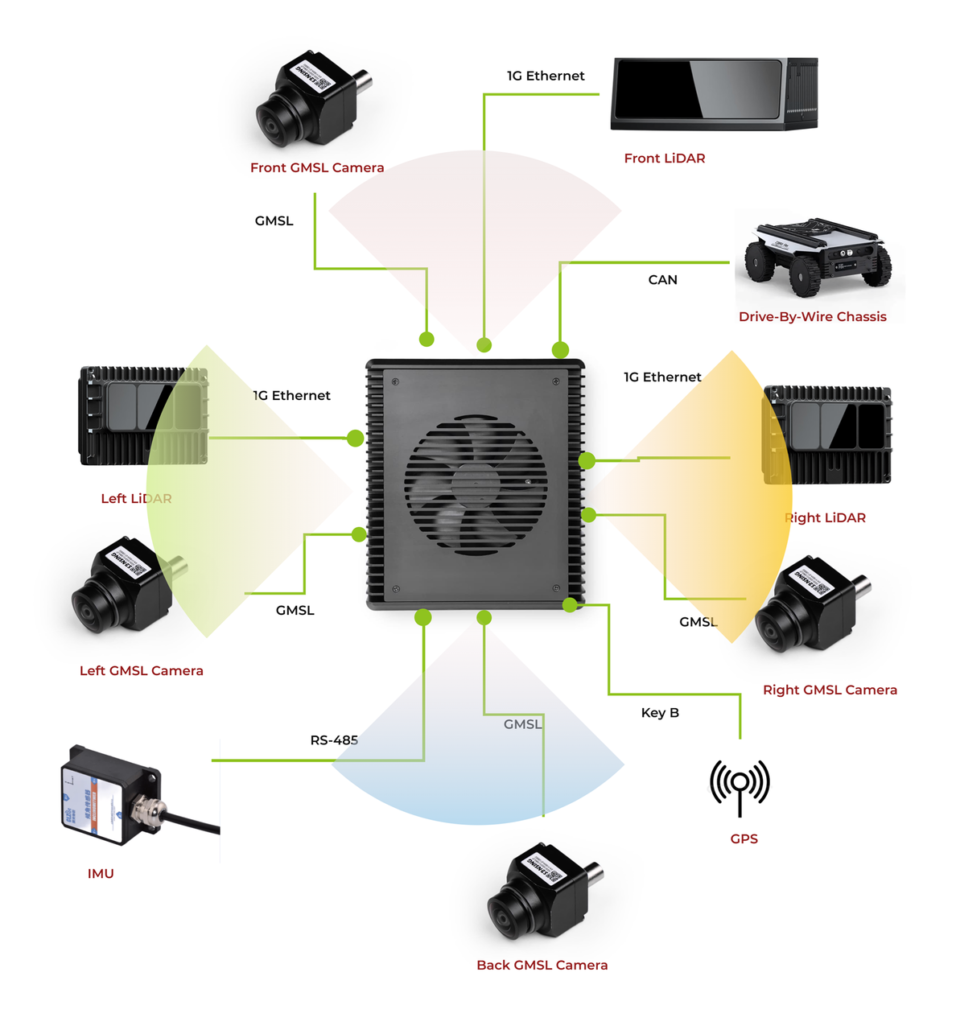

Shown below is a reference design architecture of autnomous driving vehicle based on reComputer Robotics J501. reComputer Robotics J501 possesses 4x 1GbE, 1x 10GbE, 8x GMSL, 4x CAN, 2x RS-232/422/485 and 4x DI/DO, which enables it to be connected to number of sensors (LiDAR’s, cameras, IMU etc).

reComputer Robotics J501 reference design

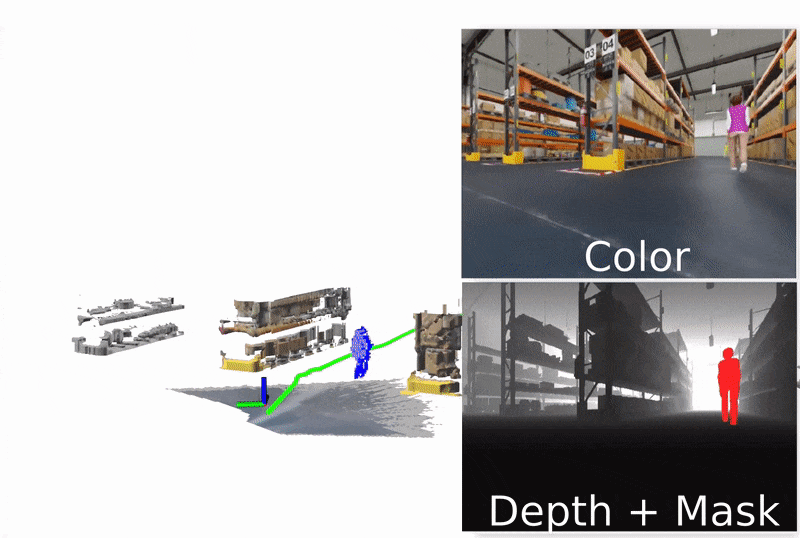

Here we also have an NVBlox demo that can be applied in autonomous driving vehicle applications based on using reComputer Robotics J5012:

Embedded Vision

The Jetson AGX Orin™ is the preferred high-performance edge platform for current production-grade embedded vision projects. It combines server-class visual AI compute (275 TOPS INT8) with embedded-level power consumption (15–60 W), while natively supporting hardware-level access for multiple industrial cameras. This solves the pain points of traditional “industrial PC + discrete GPU” solutions that are bulky, power-hungry, and suffer from uncontrollable latency.

Compared to traditional X86+GPU architecture, AGX Orin™ possesses following advantages:

• Native multi-channel high-frame-rate camera support, thus supporting multi-camera hardware sync trigger while lowering latency and jitter.
• Smaller footprint with lower power consumption, with up to 275 TOPS computing power integrated in a 100x87mm module compared to bulky 2U set up using X86+GPU and 200w+ power consumption.
• Industrial-grade packaging and IO, tailored for production-grade applications. With reComputer mini J501 or reComputer Robotics J501, you will also get vibration-resistant device capable of operating reliably across a wide temperature range.

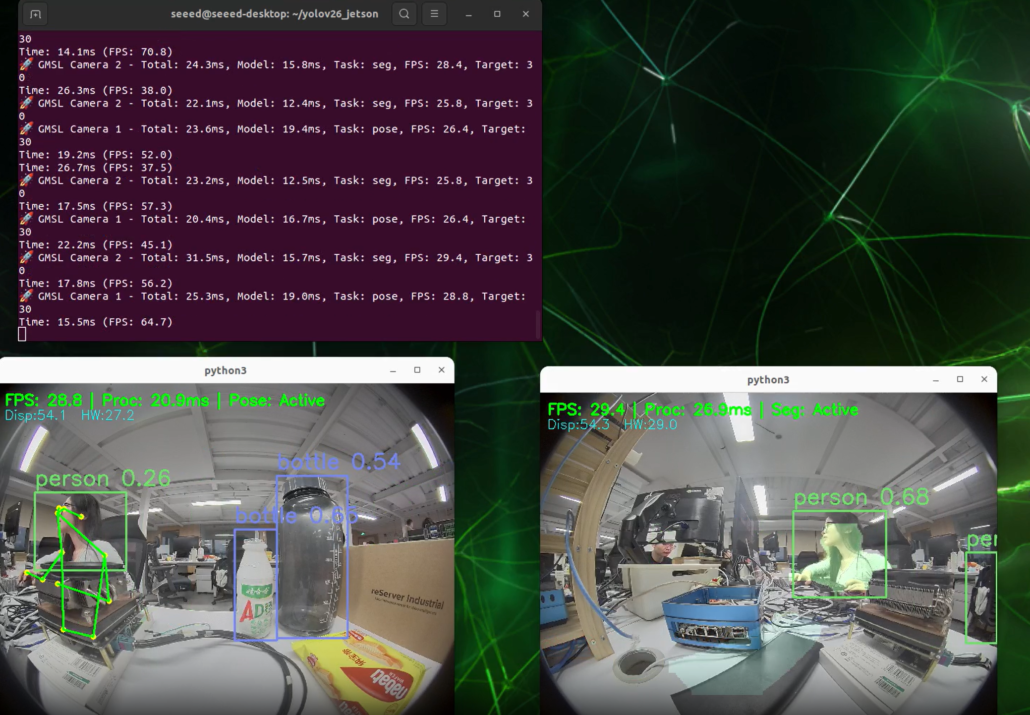

Here Seeed provides a YOLOv26 demo based on reComputer Robotics J501:

Multi-modal AI

AGX Orin™ could be the sensory fusion hub at the edge. It encodes, aligns, and reasons over multi-modal inputs from cameras, microphones, radar, and text—all inside the device—and outputs actionable language, motion, or decisions, without requiring network connectivity or sending data off-device.

From natural “voice + vision” interaction in industrial robots, to local “imaging + medical records” diagnosis at the medical edge, to end-to-end VLA control in embodied intelligence, Orin is currently the optimal edge platform for production deployments that balance model scale, inference speed, and power consumption.

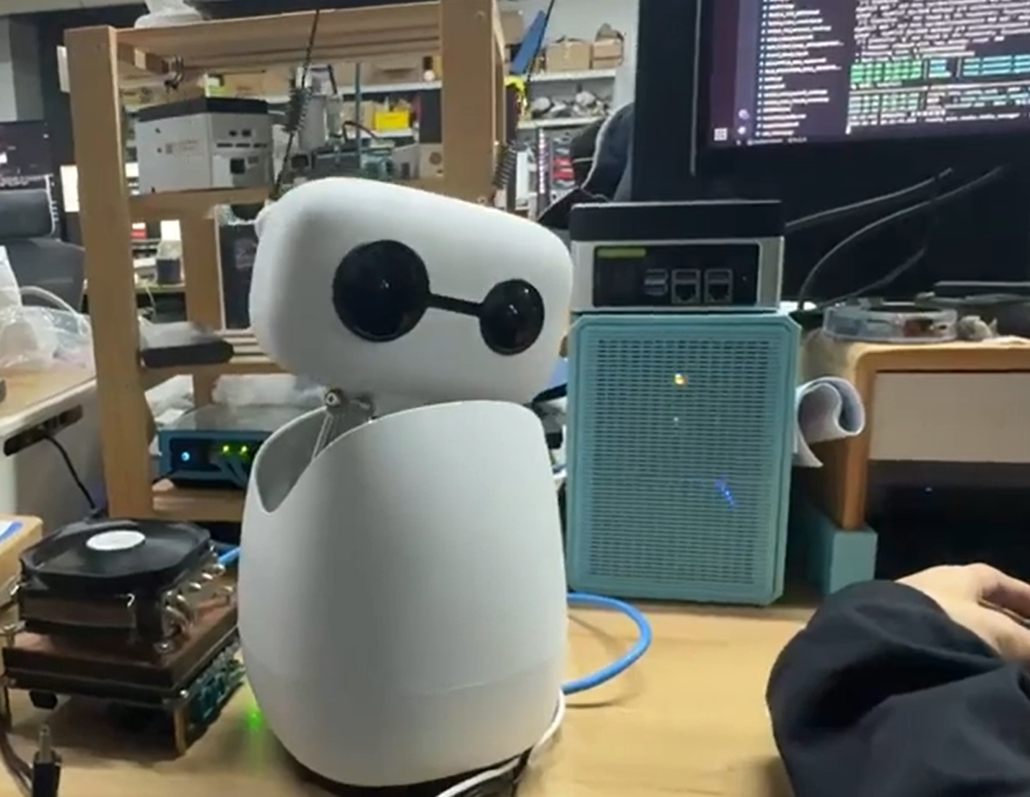

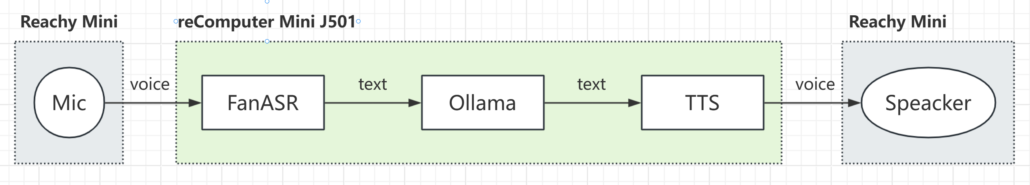

Here is an example of local voice LLM deployment on reComputer Mini J501:

From being the brain of advanced robots and autonomous vehicles to powering real-time vision systems and multi-modal AI at the edge, the NVIDIA Jetson AGX Orin™ proves its versatility and raw capability. It’s not just about theoretical TOPS; it’s about enabling real, deployable, and transformative applications across industries.

The demos and wikis linked throughout are fully documented, open projects you can build today. What will you create with it?

Interested in the hardware platforms mentioned like the reComputer series? Check out the Seeed Studio Jetson ecosystem for production-optimized carrier boards and full systems to kickstart your project.
